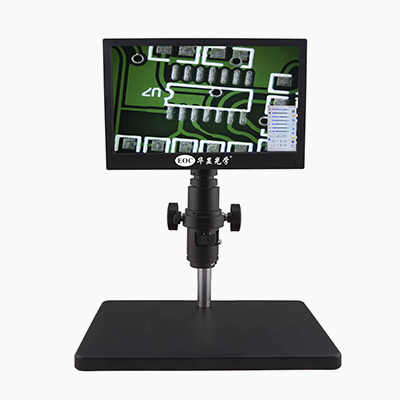

• L-200 Measuring Microscope

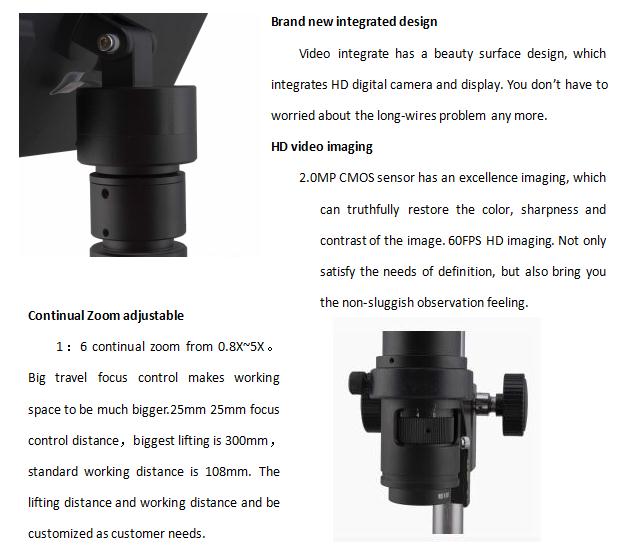

  L-200 HD Microscope has a high performance about HD observiing and real time image acquisition function. EOC develops in  combination as user needs. The Zoom Radio is 1:6, which has a best optical performance. Optical image suppresion reflexing and contour enhancement function. Greatly increase the color reduction ability, the imaging is more delicate and clearer. It use a ultrathin full view imported LCD display, fastener and high brightness LED light source, lntegrated fuselage design, realizing omnidirectional observation and real time image storage. Efficient and intergrated fuselage designs have a real-time optical magnified observation, flatness comparing, image freeze/storage function, standard measurement, dot/surface/line/circle fast measurement, widely usus in online inspection and quality analysis.















  Measurement function














• L-200 Intergrated Video Microscope







  Specification
  Optical Magnification	0.7X~5X
  CCD Tube	0.5X （1X）
  Video Zoom	15X-200X 64X~410X（32X~205X） 35X~228X（17.5X~114X）
  Monitor size	11.6 inch
  Working distance	108mm
  Optical system	EOC infinity optical system,coaxial confocal, magnification limited device
  Pixel	2.0MP
  Resolution Frame rate	1920 X 1080   60/FPS
  White balance	One key / Manual
  Controur enhancement	4 stages regulation
  Suppress strong light	4 stages regulation
  Color	Color/ Black&White
  Memory function	SD card（max 32G），online picture preview
  Illumination	Vertical high brightness LED illumination (UP and Down LED can choose)
  Measurement	Plane measurement function, Point/Surface/Line/circle/distance
  Standard Base  (other selection)	Stand Bar frame(Black), base is 380x260x20mm, Lifting 300mm, Focus range 60mm.
  	Stand Arm frame(White), Base is 318x308x16mm, Lifting range is 160mm
